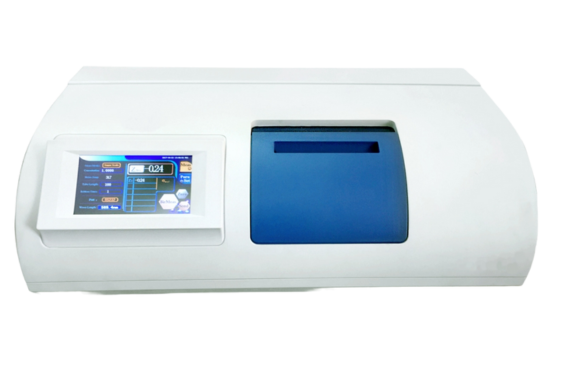

Compact and Efficient Digital Automatic Polarimeter LT-7510
The Digital Automatic Polarimeter LT-7510 is a cutting-edge instrument designed for precise measurement of optical rotation in chiral compounds, essential for pharmaceutical, chemical, and research laboratories. Combining advanced digital technology with an automatic sample handling system, the LT-7510 ensures highly accurate, fast, and reproducible results with minimal user intervention. Equipped with a high-resolution digital display and intuitive interface, the polarimeter offers easy operation and quick calibration. Its robust design, coupled with sensitive detection capabilities, makes it ideal for quality control, research, and development tasks. The LT-7510 supports various measurement modes, allowing flexible testing of a wide range of samples including liquids and solutions.
Product Features :
- Touch Screen Colour Display
- Temperature Display
- Measurement of dark-colored sample
- USB & RS232
- No warm-up time is required when instrument is switched on
- Insulated Sample chamber to keep sample temp. constant
- Photodiode Detector
ACCESSORIES :
- Sample Tubes 100mm, 200mm
- Software Kit: RS232 Cable, Software
- Touch Pen
- Main Lead
- Fuse
- Instruction manual
TECHNICAL SPECIFICATIONS :
| 4 Test mode | Optical rotation specific rotation sugar degree and concentration |
| Light source | LED |
| Measurement range | ±45° (optical rotation ± 120° Z(sugar) |
| Wavelength | 589.3nm |
| Minimum indicating value | 0.001° (optical rotation) |
| Accuracy | ±0.01° (-15° < optical rotation <+15°) ±0.02° (optical rotation<-15° or optical rotation>+15°) |
| Repeatability | 0.002° (optical rotation) |
| Display | Color Touch Screen |
| Test tube | 200mm 100mm |
| Sample transmittance | > 1% |
| Interface | USB & RS232 |
| Operation voltage | 220V± 22V 50Hz |
| Overall Dimensions | 850mm x 500mm x 470mm |
| Weight(Gross) | 38kg |
| Software | Yes |
