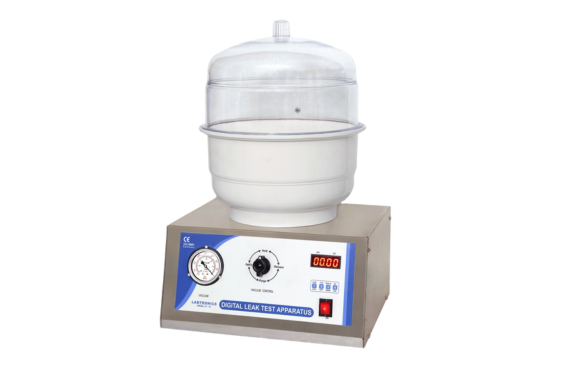

Precision Leak Testing with Digital Leak Test Apparatus LT-75
The LT-75 Digital Leak Test Apparatus is a reliable and high-precision instrument designed to test the integrity of packaging materials such as blister packs, strip packs, sachets, and other pharmaceutical packaging. Using a vacuum-based system, it efficiently detects leaks that could compromise product quality, ensuring compliance with regulatory standards. Featuring a digital timer, vacuum gauge, and user-friendly controls, the LT-75 offers consistent and reproducible results with minimal operator intervention. Its compact and durable design makes it ideal for use in QC labs, R&D centers, and production environments.
Product Features :
- Programmable Time With Digital Display
- Auto Stop After Completion of Set Time With Alarm
- Precise Control of Vacuum
- Heavy Duty Oil-free Vacuum Pump
- 1mm Thick SS-304 cabinet
ACCESSORIES :
- Instruction Manual
- 12 Inch vacuum desiccator
- Connecting pipes
TECHNICAL SPECIFICATIONS :
| Type | GMP Model In-built Test Unit |
| Time Control & Range | Digital Programmable 00.01 sec to 99min59sec |
| Test Vacuum Range | Adjustable up-to 650 mmHg |
| Vacuum Display | 2.5" SS Vacuum Gauge |
| Vacuum Control & Release | By Single Front Panel Knob |
| Audio Alarm at completion | Yes |
| Vacuum Pump | Oil free MV 27"+-5%1/4HP Motor |
| Test Unit Size | 200mm 250mm & 300mm (any one) (Specify in Order) |
| Power | 230V ±10%AC 50hz |
| Dimension | 600x450x200mm (approx) |
| Weight | 8kg (approx) |
