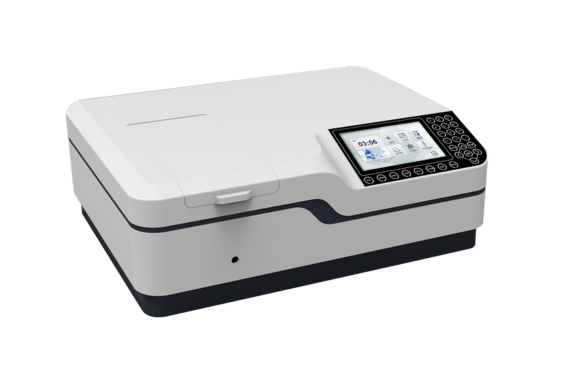

High-Precision Double Beam UV-VIS Spectrophotometry LT-2201

The LT-2201 Double Beam UV-VIS Spectrophotometer is a high-precision analytical instrument designed for accurate measurement of absorbance and transmittance across the ultraviolet and visible spectrum. Its double-beam design ensures enhanced stability, reduced baseline drift, and improved reproducibility of results. Equipped with advanced optical and electronic systems, the LT-2201 delivers fast, reliable, and consistent measurements for research, quality control, and industrial applications. User-friendly interface, robust construction, and versatile wavelength range make it ideal for laboratories requiring precision, efficiency, and dependable performance in spectrophotometric analysis.

Product Features :

Double Beam Optics
320x240 TFT Colored Graphical LCD
Auto Wavelength Setting
On-screen Standard and Kinetic Curve Display
Tungsten/Deuterium Lamp can be tumed ON/OFF Individually to Extend Lifetime
Application Software provides complete control of the instrument from a computer through the built-in USB Port
Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNA/Protein modes
Pre-aligned design makes it convenient to change Lamps
Large Sample Compartment can accommodate 5-100 mm path-length cuvettes with optional holders

ACCESSORIES :

TECHNICAL SPECIFICATIONS :

Function	Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein
Wavelength Range	190-1100 nm
Spectral Bandwidth	1.0 nm
Optical System	Double Beam, Grating 1200 lines/mm
Wavelength Accuracy	± 0.1 nm
Wavelength Repeatability	± 0.1 nm
Scanning Speed	HI, MED & LOW, MAX. 3600 nm/min
Photometric Accuracy	± 0.3 %T or ± 0.002 A/h @1A
Photometric Range	%T 0-200% Abs: -0.4 to 4A Conc. : 0 - 9999 C
Stray Light	< 0.05 T @ 220 nm & 340 nm
Stability	±0.001 A/h @ 500 nm
Display	7 Inches 320 * 240 TFT collored graphical LCD
Baseline Flatness	± 0.001 A/h (200 - 1000nm)
Sample Compartment	2 cell holder 10 mm path-length, (50 mm & 100 mm path-length optional at extra cost)
Light Source	Halogen & Deuterium Lamps (Pre-Aligned)
Printer Interface	USB drive, USB host and RS 232
Detector	Silicon photodiode
PC Connectivity	USB Port for PC connectivity and RS 232
Power	230 0± 10% AC, 50 Hz
Dimensions (L x B x H)	580 * 500 * 210 (Approx.)
Weight	16.0 Kg. (Approx)
