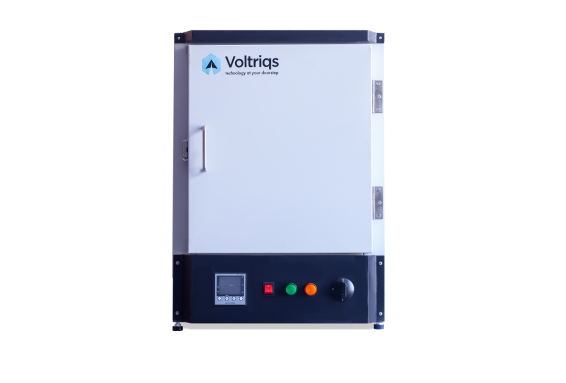

Reliable Hot Air Ovens for Efficient Laboratory Sterilization and Drying
Voltriqs Tech Solution’s Hot Air Oven provides efficient and uniform heating for sterilization, drying, and baking applications in laboratories and industrial settings. Equipped with advanced temperature controllers and insulated chambers, it ensures precise temperature maintenance and energy efficiency. Ideal for sterilizing glassware, metal instruments, and heat-resistant materials, our hot air ovens are designed for reliability, safety, and consistent performance, meeting the demands of quality control, research, and production environments.
CONSTRUCTION
- Double walled construction, inner chamber Stainless steel & Outside Casing Stainless steel or Mild steel powder coated.
- Gap between the walls is filled with special grade mineral wool/Glass wool for proper insulation to avoid heat loss and thereby saving energy.
- external metal door is fully insulated with air proof door lock.
- Air ventilation is provided on the top or both side of unit to remove hot gases/fumes.
- Supplied with Stainless Steel Shelves.
DOCUMENTATION
- Manual and SOP is provided with Hot Air Oven where IQ, OQ, PQ provided on demand.
- Calibration certificates for hot air oven, which are traceable to national standards.
OPTIONAL EQUIPMENTS
- Digital timer
- Buzzer alarm
- Additional shelves
- Programmable controller with data communication
| MODEL | DIMENSIONS (L x W x H) | CAPACITY (Ltr.) | Power KW (approx) | BODY MATERIALS |
| VTS-M05-40 | 350 X 350 X 350mm | 40 | 1.00 | Outer MS Inner SS 304 |
| VTS-M05-90 | 450 x 400 x 500mm | 90 | 1.50 | |
| VTS-M05-120 | 450 x 450 x 610mm | 120 | 2.00 | |
| VTS-M05-125 | 500 x 500 x 900mm | 225 | 2.50 | |
| VTS-M05-320 | 600 x 600 x 900mm | 320 | 3.00 | |
| VTS-S05-40 | 350 x 350 x350mm | 40 | 1.00 | Fully SS (GMP) |
| VTS-S05-90 | 450x 400 x 500mm | 90 | 1.50 | |
| VTS-S05-120 | 450 x 450 x 610mm | 120 | 2.00 | |
| VTS-S05-225 | 500 x 500 x 900mm | 225 | 2.50 | |
| VTS-S05-320 | 600 x 600 x 900mm | 320 | 3.00 |
TECHNICAL SPECIFICATIONS :
| Temperature Range | 5°C above ambient to 250°C |
| Accuracy | ± 2°C (or better) |
| Heating Element | High grade U-shaped tubular heater placed at the bottom right & left side of the inner chamber |
| Digital Temp Controller | Micro-Processor based auto tune PID Digital Temperature Controller with PT-100 Sensor |
| Resolution | 0.1°C |
