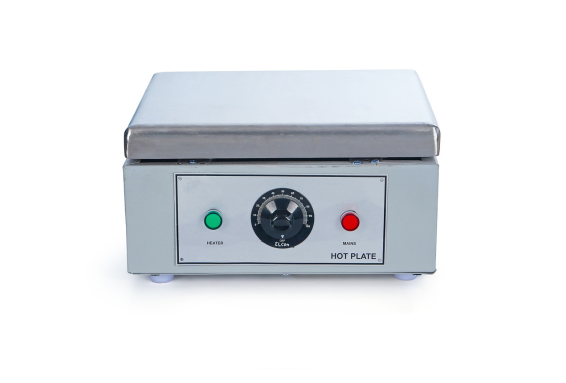

High-Performance Hot Plates for Laboratory and Industrial Use
Voltriqs Tech Solution’s Hot Plate offers reliable and uniform heating for laboratory applications such as sample preparation, chemical reactions, and experiment setups. Equipped with precise temperature controls and a durable heating surface, it ensures consistent and efficient heat distribution. Compact and easy to operate, this hot plate is ideal for research labs, educational institutions, and industrial testing environments requiring safe and controlled heating.
CONSTRUCTION
- Fully mild steel/ Top plate Stainless Steel and body mild Steel/ complete Stainless Steel.
- Hot plate design with grooves concealed heaters or long life.
- Uniform heating throughout hot plate surface.
- Three stage heat control switch to select LOW, MEDIUM or HIGH heat.
- Air ventilated lower body to minimize heat even when the top plate is heated.
- Temperature range upto 350°C.
- Optional: Digital temperature controller.
TECHNICAL SPECIFICATIONS :
| MODEL | DIMENSIONS (L x W x H) | Power KW (approx) | WORKING SIZE | BODY MATERIALS |
| VTS-M17-08S | 260×270×203mm | 0.75 | 8" | Fully M.S |
| VTS-M17-12S | 255×305×170mm | 1.00 | 10"x12" | |
| VTS-M17-16S | 255×405×170mm | 1.50 | 10"x16" | |
| VTS-M17-18S | 305×460×170mm | 2.00 | 12"x18" | |
| VTS-M17-24S | 460×610×170mm | 3.00 | 18"x24" | |
| VTS-S17-12S | 255×305×170mm | 1.00 | 10"x12" | Fully S.S |
| VTS-S17-16S | 255×405×170mm | 1.50 | 10"x16" | |
| VTS-S17-18S | 305×460×170mm | 2.00 | 12"x18" | |
| VTS-S17-24S | 460×610×170mm | 3.00 | 18"x24" | |
| VTS-T17-12S | 255×305×170mm | 1.00 | 10"x12" | TOP S.S BODY M.S |
| VTS-T17-16S | 255×405×170mm | 1.50 | 10"x16" | |
| VTS-T17-18S | 305×460×170mm | 2.00 | 12"x18" | |
| VTS-T17-24S | 460×610×170mm | 3.00 | 18"x24" |
