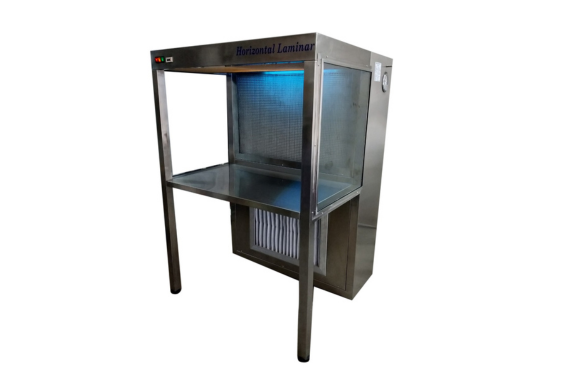

Voltriqs Laminar Air Flow – Clean Air for Critical Lab Applications
Voltriqs Tech Solution’s Laminar Air Flow cabinet is designed to provide a clean, sterile, and particle-free working environment essential for sensitive laboratory applications. Equipped with high-efficiency HEPA filters, it ensures unidirectional airflow to prevent contamination during microbiological, pharmaceutical, and tissue culture procedures. Built with durable materials and ergonomic design, it offers user safety, low noise operation, and easy maintenance—ideal for research labs, hospitals, and cleanroom settings.
CONSTRUCTION
- Cabinet is completely Stainless steel 304 with no gaps to preventing the collection of spores.
- The front of the cabinet is provided with a glass shield or open as per requirement.
- Centrifugal blower and Filter housing is made of MS powder coated.
| MODEL | INNER CHAMBER DIMENSIONS (L x W x H) | POWER kW (Approx) | BODY MATERIALS |
| VTS-S07-22 | 610x610x610mm | 0.3 | Fully SS 304 |
| VTS-S07-32 | 915x610x610mm | 0.3 | |
| VTS-S07-42 | 1220x610x610mm | 0.5 |
TECHNICAL SPECIFICATIONS :
| Cleanliness | Class 100/ISO Class 5 |
| Flow direction | Horizontal/ Vertical |
| Velocity at Grill | 90± 20 FPM (0.45 ± 20m/sec) |
| HEPA Filter | Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested. |
| Pre- Filters | Pre- filter down to 5mic. Particulate at an efficiency of 95%(EU7) enclosed in aluminum frame with epoxy sealing (Washable Type) |
| Side Wall | Do with glass |
| Blower Assembly | Dynamically and statically balanced blower and motor |
| Electrical | 1. On/off switch with inbuilt lamp - 03 nos.(BL/FL/UV) 2.FL light 3. U V Light |
| Pressure Measurement | Magnehalic Gauge to check the pressure drop across the HEPA Filter |
| Power Supply | 230V 50Hz Single Phase |
| Documentation | IQ OQ PQ provided on demand |
