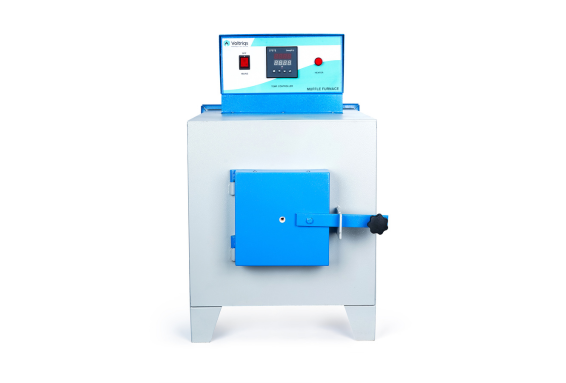

High-Temperature Muffle Furnace for Laboratory and Industrial Use
Voltriqs Tech Solution’s Muffle Furnace is engineered for high-temperature applications such as ashing, material testing, heat treatment, and gravimetric analysis in laboratories and industrial environments. Built with high-quality insulation and robust heating elements, it ensures uniform temperature distribution, fast heat-up time, and energy efficiency. The furnace features a user-friendly digital temperature controller, corrosion-resistant chamber, and safety interlocks for reliable and precise thermal performance. Ideal for research labs, pharmaceutical, ceramic, and metallurgy applications.
CONSTRUCTION
- Muffle Furnace horizontal rectangular outer body made of thick gauge mild steel with powder coating.
- Ceramic fiber wool insulation to prevent heat loss.
- Uniform heat distribution through all four sides with Kanthal A1 element.
- A special solid state silver fuse for protection of element in case of over-heating.
DOCUMENTATION
- Manual and SOP is provided with Muffle furnace where IQ, OQ, PQ provided on demand.
- Calibration certificates for muffle furnace which are traceable to national standards.
OPTIONAL EQUIPMENTS
- Over temperature safety controller
- Timer function
- Tong
- Heat resistance gloves
- Silica crucible
- Programmable controller with data communication
| MODEL | INNER CHAMBER DIMENSIONS (L x W x H) | CAPACITY (Ltr.) | POWER KW (Approx) |
| VTS-M08-02 | 220x100x100mm | 02 | 2.00 |
| VTS-M08-04 | 250x130x130mm | 04 | 2.00 |
| VTS-M08-07 | 300x150x150mm | 07 | 3.00 |
| VTS-M08-24 | 450x225x225mm | 24 | 6.00 |
TECHNICAL SPECIFICATIONS :
| Temperature Range | Max Temp 950ºC & Working Tem 900ºC / Max temp 1150 & working Temp 1100ºC |
| Temperature controller | Micro-Processor based auto tune PID Digital Temperature Controller with K-type Sensor |
| Accuracy | ±5°C |
| Resolution | 1° C |
| Power Supply | 230 Volts A C 50 Hz |
