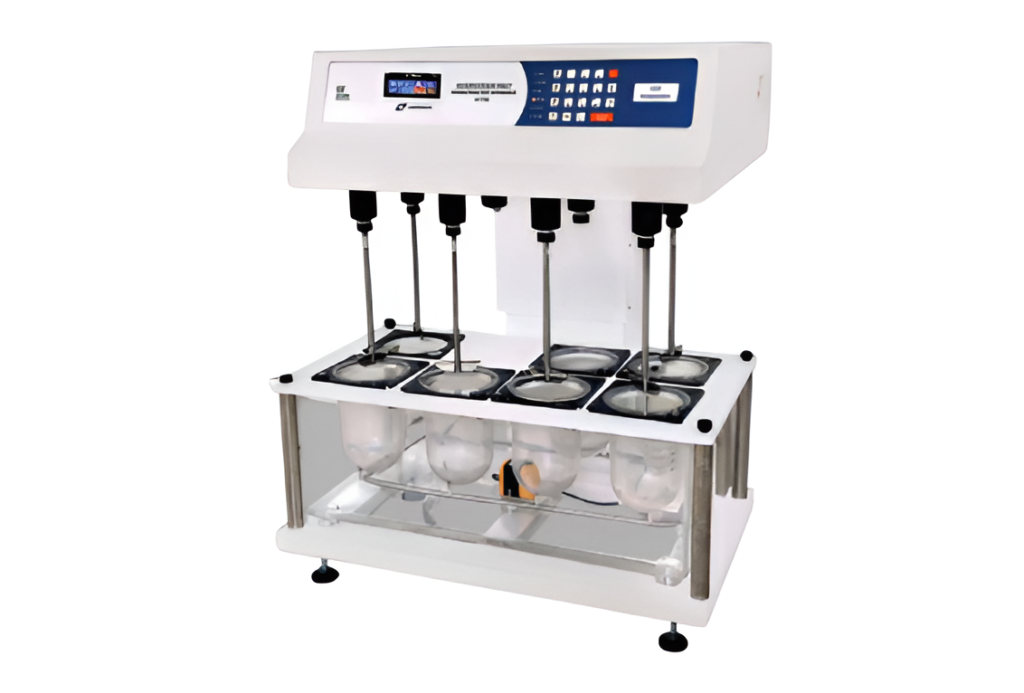

Durable and Precise Touch Screen Microprocessor Dissolution Test Apparatus LT-7210
The LT‑7210 Touch Screen Microprocessor Dissolution Test Apparatus is an advanced pharmaceutical quality control instrument designed for accurately measuring the dissolution rate of tablets and capsules in compliance with standard pharmacopeial requirements. It features a touch‑screen microprocessor control system with an intuitive interface, allowing easy programming and monitoring of test parameters such as rotation speed (typically 25–200 RPM), temperature, and test duration. The apparatus includes eight basket stations, supports multiple method setups, and provides internal storage for numerous test results, with options for USB connectivity and printer attachment for data output and documentation.
Product Features :
- 7 Inches colored touch screen.
- Password protected data login facility.
- Complies with USP, IP specifications.
- Extremely useful for pharmaceutical labs.
- Highly accurate and easy to operate.
- Programmable stirrer speed control i.e. (25-200 RPM).
- USB Interface available.
- Three programming modes i.e. routine, sustain and control.
- 40 Independent programmable setups for routine and sustain mode with storage facility.
- 400 Samples storage facility.
- Printer attachment facility.
- Audio visual indicators for system status.
- Easy to empty & clean the water bath with bottom drainage.
- Continuation of last sample run in case of power failure.
ACCESSORIES :
- Main Unit with Acrylic Tank and Rectangular Cover Plate and Water Bath Temperature Sensor (T1).
- Heater Bath Circulating Pump.
- External temperature sensor (T2) for vessel.
- Reaction vessel capacity 1000 ml (8 nos.)
- Round acrylic cover plate with hole and a large slit (8 nos.)
- S.S. paddle, S.S wire mesh basket (8 nos.)
- Glass pipettes with rubber bellows.
- Mains lead.
- Instruction manual.
- Dust cover.
TECHNICAL SPECIFICATIONS :
| Stations | 8 basket |
| Display | 7 Inches Colored Touch Screen |
| LED's | 6 LED's 3 LED's for Test status like Run Alarm End and 2 LED's |
| Prog Mode | for Platform up/down status and one for heater ON/OFF status Routine Sustain and Control mode Facility for 20 different test setups available in Routine and Sustain mode. |
| Printer | Provision for the attachment of dot-matrix printer with centronics parallel port interface available |
| STIRRER | |
| Speed | 25 – 200 RPM ± 1 RPM |
| Resolution | 1 RPM |
| Accuracy | ± 1 RPM |
| TEMPERATURE | |
| Temperature Range | 30 to 50°C |
| Accuracy | ± 1 °C |
| Temp Control | Microprocessor Based using Pt100/ Semiconductor Sensor |
| SAMPLE | |
| Reaction Vessel | Vessel 1000 ml jars with stirrer pedals and baskets |
| Heater | 1 KW |
| Power | 230 V ± 10% 50 Hz AC |
